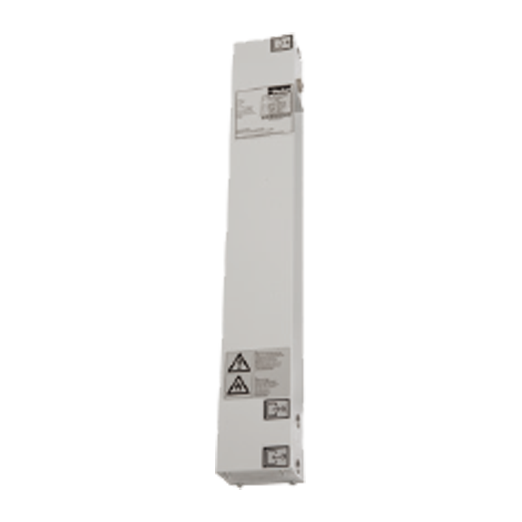

Product Advantages

Factory membrane ageing, pre-delivery

Less membrane modules needed per enrichment system

Flexible mounting arrangements

Technical specifications

Performance data

Standard test criteria are at 7 barg, other specification points are an indication

Oxygen purity%	Minimum enriched oxygen flow rate in L/min
Oxygen purity%	28	30	32	34	36	38	40
4 barg	35.7	36.6	37.4	38.2	39	39.8	-
5 barg	45.5	46.6	47.6	48.6	49.7	50.7	51.7
6 barg	55.6	56.8	58.1	59.3	60.6	61.9	63.1
7 barg	65.9	67.4	68.9	70.4	71.8	73.3	74.8
8 barg	76.4	78.1	79.9	81.6	93.4	85.1	86.8
9 barg	87.2	89.2	91.2	93.2	95.2	97.2	99.1
10 barg	98.3	101	103	105	107	109	112
11 barg	110	112	115	117	120	122	125
12 barg	121	124	127	130	132	135	138

Oxygen purity%	Feed-air consumption at minimum enriched oxygen flow rate in L/min
Oxygen purity%	28	30	32	34	36	38	40
4 barg	49.3	57.2	67.3	83.2	109	155	-
5 barg	62.8	71.6	82.8	99.7	124	162	279
6 barg	76.7	87.1	101	117	147	186	278
7 barg	90.9	103	120	139	167	209	299
8 barg	105	120	139	161	194	243	334
9 barg	120	136	159	184	223	277	377
10 barg	136	154	179	208	252	318	441
11 barg	152	172	201	233	287	366	525
12 barg	169	191	222	259	321	419	624

Enriched oxygen flow exits at atmospheric pressure

Maximum pressure drop over nitrogen enriched flow <0.3 bar.

Maximum enriched oxygen flow rate = minimum flow rate + 30%

1.l/min refers to conditions at 1013 mbar(a) and 20°C

Ambient Conditions

		Ambient temperatures	+2℃~+50℃
		Ambient pressure	atmospheric
		Air quality	clean air without contaminants

Material

Feed-air Conditions

		Maximum operating pressure	13.0barg**
		Min./Max. operating temperature	+2℃~+50℃
		Maximum oil vapour content	＜0.01mg/m³
		Particles	filtered at 0.01 μm cut off
		Relative humidity	＜100%（non condensing）

Weight，Dimensions and Connections

		Dimensions（HWD）	7578063mm
		Weight	3.2kg
		Connection feed-air	G3/8”female to ISO 228
		Connection nitrogen enriched air	G3/8”female to ISO 228
		Connection enriched air at atmospheric pressure	G3/8”female to ISO 228
		Dimensional drawing	Refer to K3.1.344

Flow Rate Corrections

		Nitrogen flow rate at feed temperatures other than 20°C	Use bulletin S3.1.085*
		Feed-air consumption at feed-air temperatures other than 20℃	Use bulletin S3.1.085*

*version number may vary, make sure to use the most recent version.
