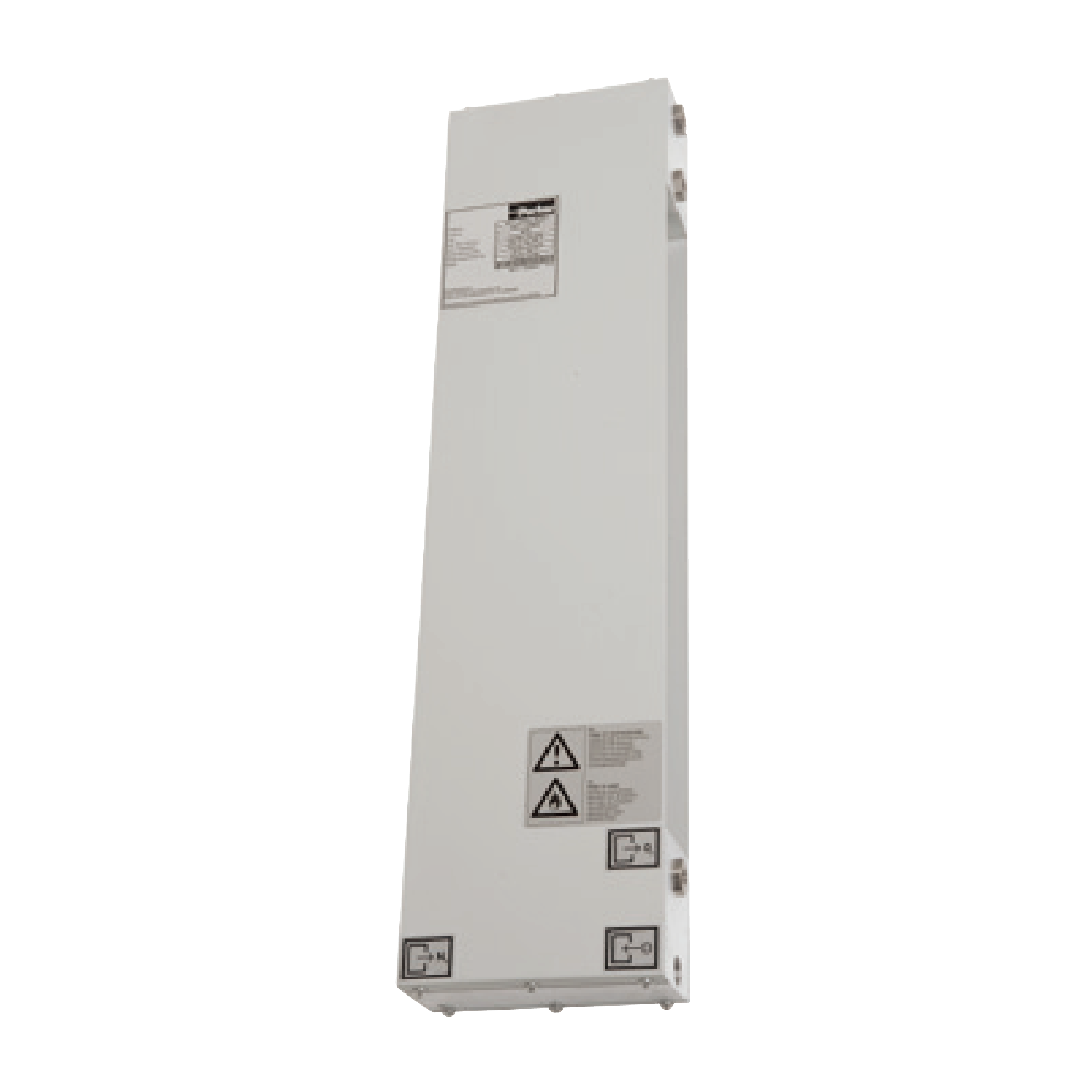

Product Advantages

Factory membrane ageing, pre-delivery

Less membrane modules neededper nitrogen system

Flexible mounting arrangements

Technical specifications

Performance data

Performance data is based on 20°C feed-air temperature and 1013 mbar ambient pressure

Nitrogen purity%	Minimum nitrogen flow rate in m³/hr
Nitrogen purity%	99.5	99	98	97	96	95
4 barg	0.76	1.13	1.69	2.23	2.76	3.36
5 barg	0.95	1.41	2.12	2.78	3.46	4.19
6 barg	1.19	1.77	2.67	3.35	4.37	5.27
7 barg	1.39	2.07	3.11	3.91	5.09	6.15
8 barg	1.59	2.36	3.56	4.46	5.82	7.03
9 barg	1.75	2.63	4.03	5.30	6.60	8.00
10 barg	1.99	2.95	4.45	5.58	7.28	8.79

Nitrogen purity%	Feed-air consumption at minimum nitrogen flow rate in m³/hr
Nitrogen purity%	99.5	99	98	97	96	95
4 barg	5.79	6.21	6.95	7.57	8.02	8.72
5 barg	7.24	7.77	8.69	9.46	10	10.9
6 barg	8.94	9.56	10.7	11.4	12.7	13.7
7 barg	10.4	11.2	12.5	13.3	14.8	16
8 barg	11.9	12.7	14.2	15.2	16.9	18.3
9 barg	13.3	14.5	16.1	18	19.1	20.8
10 barg	15.1	16.2	17.8	19	21.1	22.9

Maximum pressure drop <0.8 bar.

Maximum nitrogen flow rate= minimum flow rate + 10%

1)Parker membranes separate oxygen from pressurised ar. The compostion ofthe product is detemined by measuring the residual oxy gen content. The nirogen conient is calculated by subtacting the residual oxygen content from 100 %. Ar is composed of nirogen (78.1%）, oxygen (20.9 %）, Argon(0.9%), CO₂（0.03%）and some trace inet gases.Thereforeit should be bom in mind that the value that is nommally called the nitrogen content actually is the inert gas content.

2) m³/hr refers to conditions at 1013mbar(a) and 20°C

Ambient Conditions

Ambient temperature		+2℃~+45℃
Ambient pressure		atmospheric
Air quality		clean air without contaminats

Material

Housing

Aluminum

Feed-air Conditions

Maximum operating pressure		10.0barg
Min./Max. operating temprature		+2℃/+45℃
Maximum oil vapour contant		＜0.01mg/m³
Particles		filtered at 0.01 μm cut off
Relative humidity		＜100%（non condensing）

Weight,Dimensions and Connections

Dimensions（HWD)		75814563mm
Weight		6.0kg
Connection inlet/outlet		G3/8”female
Vent		G3/8”female
Dimensional drawing		Refer to K3.1.350

Flow Rate Corrections

Nitrogen flow rate at feed temperatures other than 20℃		Use bulletin S3.1.059*
Feed-air consumption at feed-air temperatures other than 20℃		Use bulletin S3.1.059*

*version number may vary, make sure to use the most recent version
